Nin10-Drawer

The Nin10-Drawer fixes the front-loader’s reliability at the root by replacing the failure-prone push-down tray + aging 72-pin contact behavior with a Toploader-style slot, consistent cartridge seating, and an integrated lockout/region bypass—while keeping the classic front-loader experience.

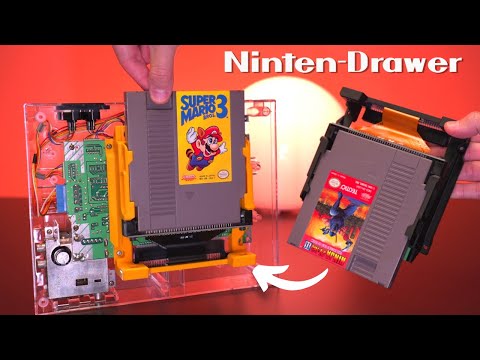

Over time, the push-down tray design gradually deforms the connector pins and turns game loading into a ritual: reseat, reset, wiggle, repeat—often ending in the dreaded blinking red light. The Nin10-Drawer replaces the entire tray + connector experience with a Top-Loader-style cartridge slot and a smooth, satisfying drawer mechanism that makes reliable booting again.

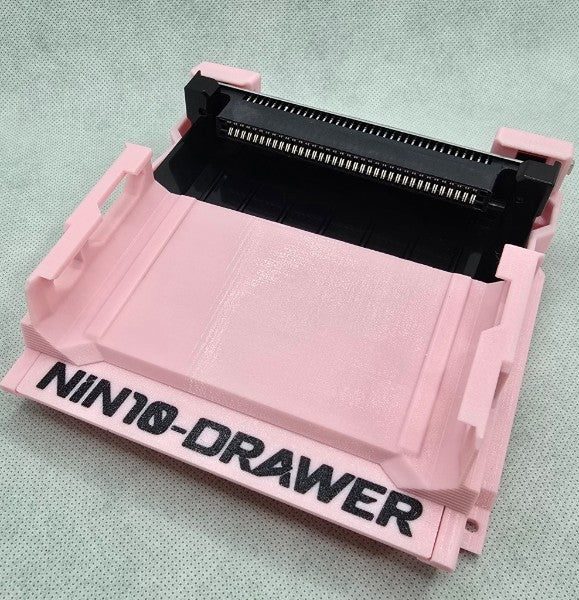

Instead of bending pins and relying on the original push-down tray geometry, the Nin10-Drawer uses a "Toploader" style connector—the style many people associate with better long-term contact—while keeping the look and feel. It also includes a built-in lockout / region-free bypass, which helps avoid the reset loop behavior that can happen when the console can’t reliably read a cart.

The Nin10-Drawer includes an interchangeable nameplate system with many additional faceplates available for purchase, or use our template to design your own.

The short version

• No more Death Grip: the drawer exposes more cartridge to grab, and the fit is designed to feel secure without the "needle-nose pliers" experience common with some replacements.
• Magnetic “click” seating: an integrated magnetic clasp pulls the cartridge into position with a satisfying snap.
• No soldering, no assembly: it’s a true drop-in replacement; disassembly is the slow part.
• Customizable: Get the color and design you want, or make your own faceplate!

Features

• Easy no-solder installation
• Drawer-Style insertion/removal
• Built-in region-Free lockout bypass
• Magnetic cartridge clasp holds it in place with a satisfying “click”

• Customizable and interchangeable nameplate system
• Injection Molded tray for smooth sliding
• PETG printed structural parts for improved heat resistance and flexibility

What's Included

• Nin10-Drawer unit
• Matching Nameplate (Note: special editions ship with their themed plate instead)
• Instructions / QR-linked install guide

Compatibility

The Nin10-Drawer uses a Toploader-style connector, and that matters: some accessories that physically “fit” a front-loader’s original ZIF/tray setup won’t fit a Toploader-style slot.

After extensive real-world testing, the rule of thumb is: If it works on a Toploader, it will work on the Nin10-Drawer.

Game Genie

Not recommended / not supported. The Game Genie PCB is unusually thick; it can apply enough pressure to permanently bend pins in Toploader-style connectors. An original Toploader adapter exists but is often expensive, so we don’t recommend it as a "solution."

"Sticky" carts / unlicensed games

Some unlicensed carts/accessories use thicker PCBs, which can increase friction. If a cart feels tight, don’t yank from the middle—pull from alternating corners ("wiggle") for an easy release.

Installation Overview

Tools: Phillips screwdriver. No soldering.

High level: open the Console, remove RF shielding + old tray/connector, slide in the Nin10-Drawer, secure, test, reassemble.

Many installers report it’s straightforward—often ~5–10 minutes once you’ve opened the console (disassembly takes longer than the actual swap).

First-boot "blinking light" after install?

This is usually just the region-free bypass syncing. Press RESET quickly 6–10 times until you see the behavior change, then 6–10 more times until it finishes.

Pro tip: clean your carts first

Even a perfect connector can’t read through grime. Clean the cartridge contacts before you “judge” the new slot.

This product is made by RockerGaming, not made nor endorsed by Nintendo.
